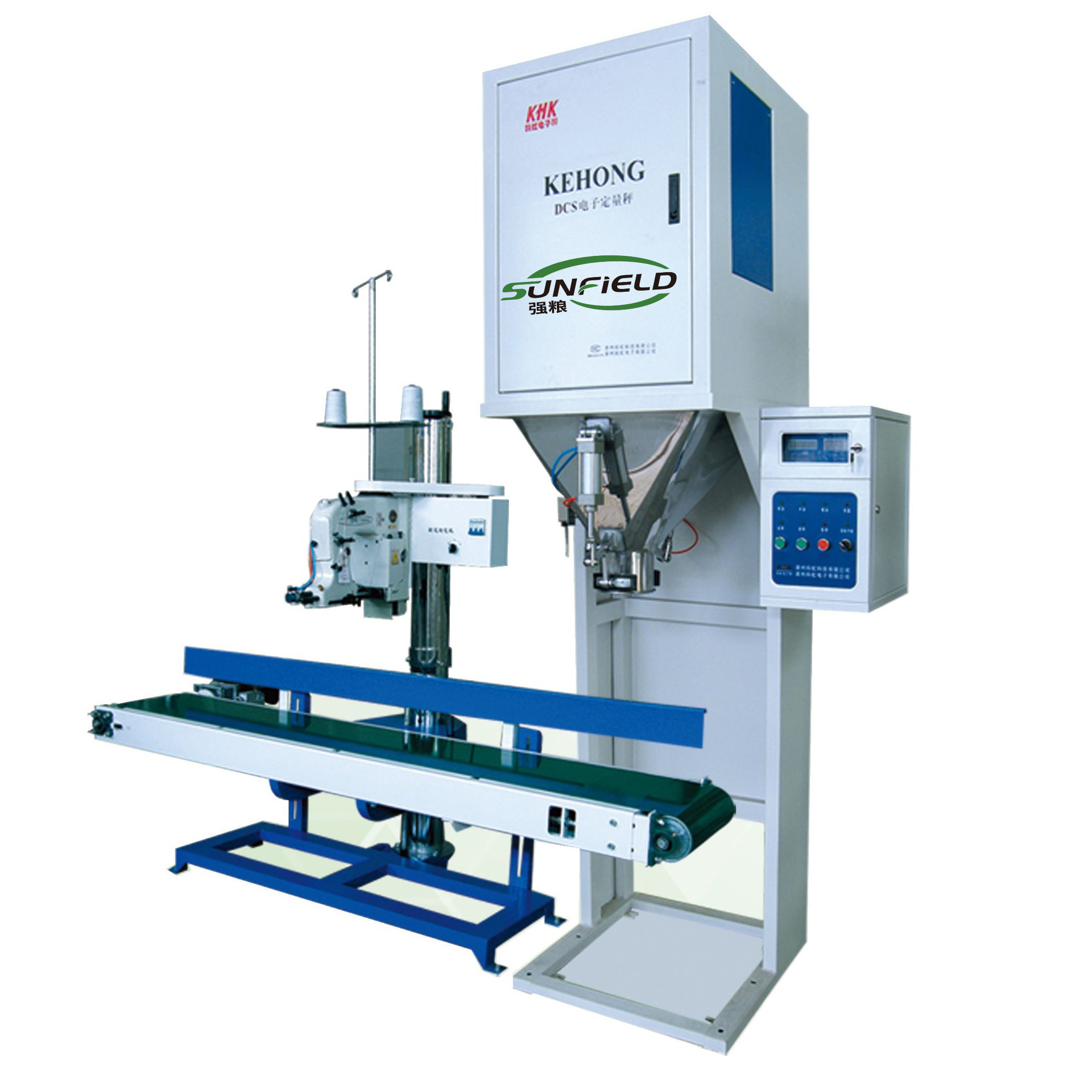

DCS-A系列电子定量秤
DCS-A Series Rationed Packing Machine
l 产品特点Product Features
•新型双显仪表计量精度高，性能稳定，可显示累计重量，包装数量，操作更为简便快捷。
•自适应软件，具有控制参数自动设定、落差自动修正、超差报警、故障自诊断等功能。
•定量范围宽，精度高，配合台面可升降的输送缝包机，一机多用，效率高。
•采用进口传感器、气动执行机构，工作可靠、维护简单、无污染。
•机壳采用先进喷塑工艺，与物料接触部件选用不锈钢材料，卫生标准高、抗腐蚀、设备使用寿命长。
•可选配自动热打码，自动缝包，自动切线等功能。
•New double display with high precision, stable working, easy operation, displays the accumulated weight, number of packages.
•Applied self-adaptive software, with automatic control parameters setting, automatic drop revising, over-weight warning and auto-diagnosis functions.
•Wide packing range, high precision, it matches well with conveyor and sewing machine in high efficiency.
•Well-known brand sensor, pneumatic actuator equipped, reliable working, easy maintenance and non-pollution.
•With painted plastic main body. Main material contact part is made of stainless steel, corrosion resistance, long service life.
•Communication interface optional for data communication with PC.
l 应用范围Application
食品、粮食、饲料、糖业、化工等行业的颗粒状物料定量包装。
It is suitable for the quantitative packaging of granules in food, grain, animal feeding, sugar making and chemical industry, etc.
l 技术参数Main Parameter
型号 Model | 量程 Packing range (kg) | 装包误差 Packing tolerance (F.S) | 分度值 Division value (g) | 装包速度 (bag/H) Packing speed (bag/H) | 电源气源 Power & air supply | 外型尺寸 Machine dimension (mm) | 执行机构 Actuator | 精度等级 Accuracy level |
DCS-5 | 1-5 | 0.2% | 5 | 300-500 | AC220V 50Hz 0.4-0.8MPa | 1890X620X710 | 气动装置Pneumatics | x(0.2) x(0.1) |
DCS-25 | 2.5-25 | 0.1% | 10 | 300-420 | AC220V 50Hz 0.4-0.8MPa | 2450X650X715 | 气动装置Pneumatics | x(0.2) x(0.1) |
DCS-50 | 5-50 | 0.1% | 20 | ≥300 | AC220V 50Hz 0.4-0.8MPa | 2560X650X715 | 气动装置Pneumatics | x(0.2) x(0.1) |
DCS-100 | 10-100 | 0.1% | 20 | ≥300 | AC220V 50Hz 0.4-0.8MPa | 2960X730X775 | 气动装置Pneumatics | x(0.2) x(0.1) |
